National Chimney Caps

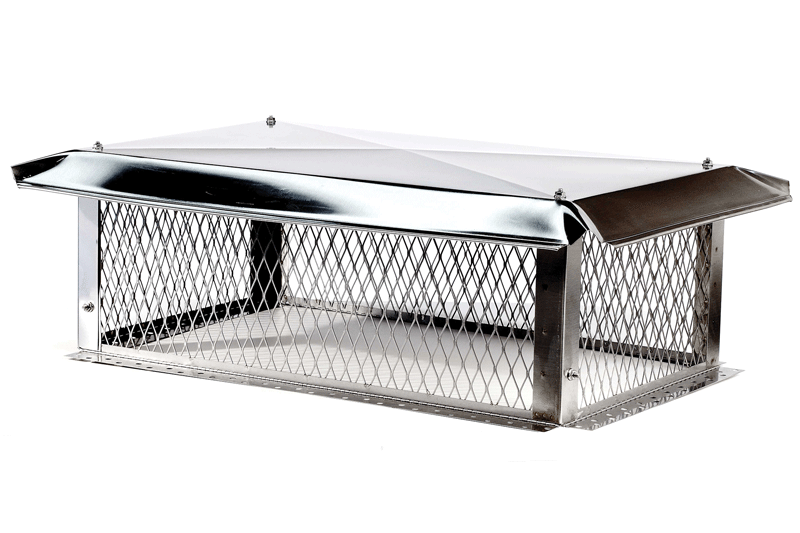

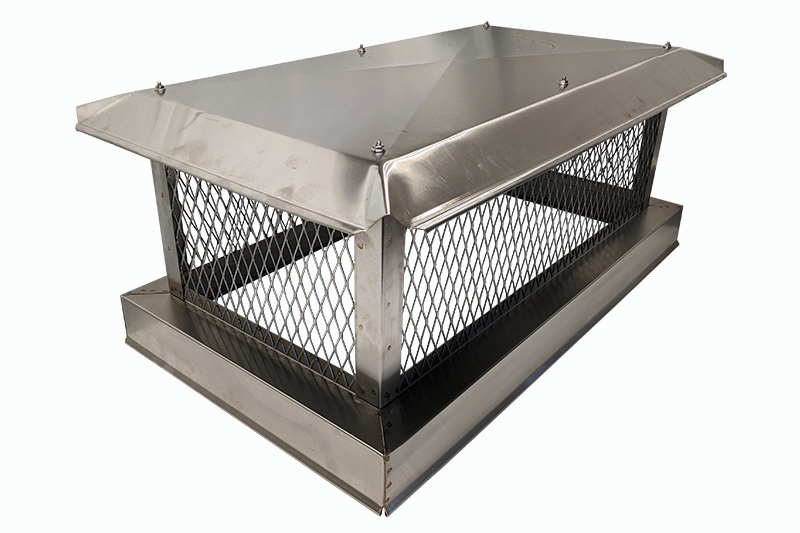

Premier Top Mount Multi Flue Caps: Standard Skirt Flat Lid
The multi-flue cap has a top mount design that easily attaches to the top of the chimney crown or brick with chimney top adhesive and tapcons (included with each cap). All Premier Top Mount Multi-Flue Caps have a hinged mounting system that gives extra space for a tight fit. Premier Multi-Flue Caps are available in virtually all lengths and widths and four standard heights: 8", 10", 12", and 16". (Height doesn't affect price.) Our most popular sizes have special, discounted pricing. Note: The lid extends 3" beyond the side of the cap. So for example, a 9" x 9" cap would have a lid that is 15" x 15".

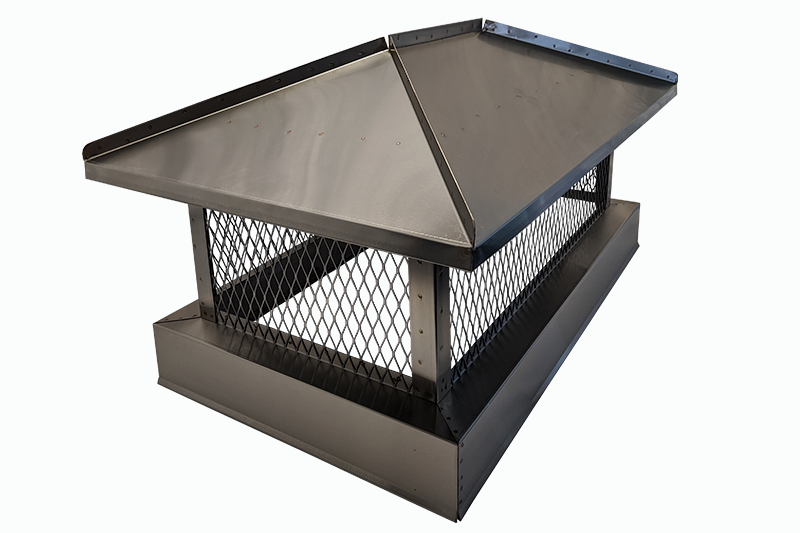

Premier Top Mount Multi Flue Caps: Skirt Style Hip & Ridge Caps
The multi-flue cap has a top mount design that easily attaches to the top of the chimney crown or brick with chimney top adhesive and tapcons (included with each cap). All Premier Top Mount Multi-Flue Caps have a hinged mounting system that gives extra space for a tight fit. Premier Multi-Flue Caps are available in virtually all lengths and widths and four standard heights: 8", 10", 12", and 16". (Height doesn't affect price.) Our most popular sizes have special, discounted pricing. Note: The lid extends 3" beyond the side of the cap. So for example, a 9" x 9" cap would have a lid that is 15" x 15".

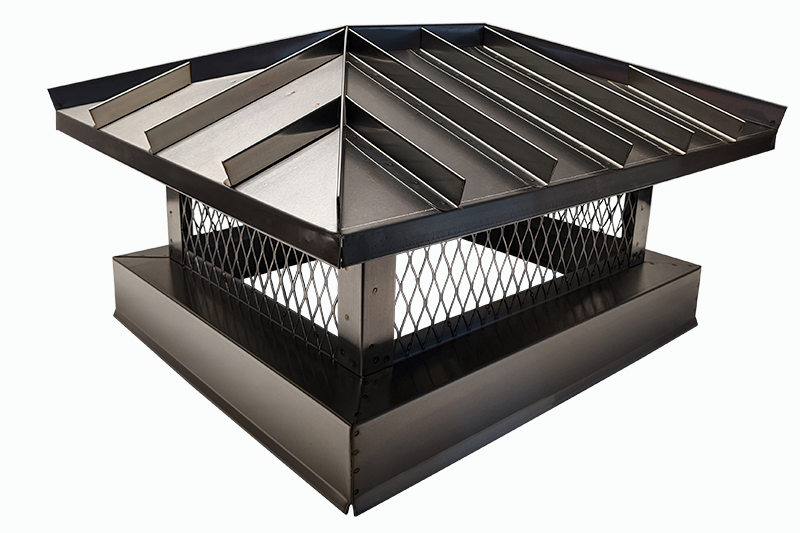

Premier Top Mount Multi Flue Caps: Skirt Style Hip & Ridge Standing Seam
The multi-flue cap has a top mount design that easily attaches to the top of the chimney crown or brick with chimney top adhesive and tapcons (included with each cap). All Premier Top Mount Multi-Flue Caps have a hinged mounting system that gives extra space for a tight fit. Premier Multi-Flue Caps are available in virtually all lengths and widths and four standard heights: 8", 10", 12", and 16". (Height doesn't affect price.) Our most popular sizes have special, discounted pricing. Note: The lid extends 3" beyond the side of the cap. So for example, a 9" x 9" cap would have a lid that is 15" x 15".

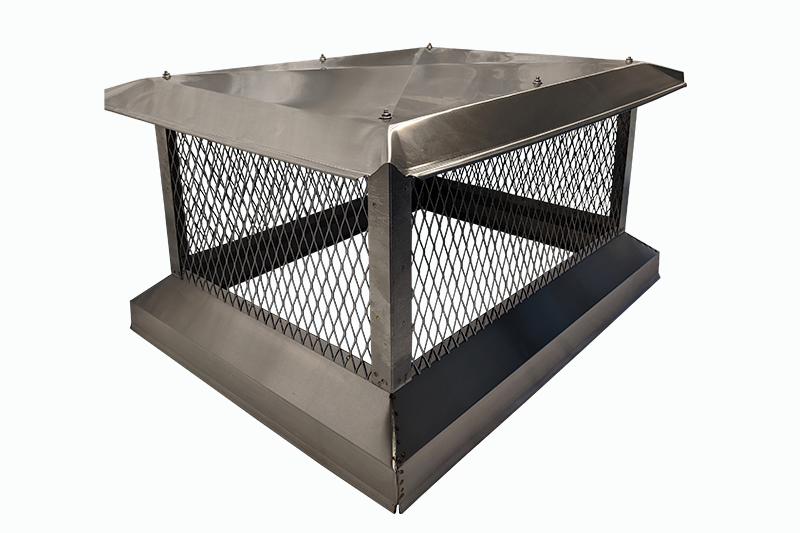

All National Chimney caps are available with pitched skirt

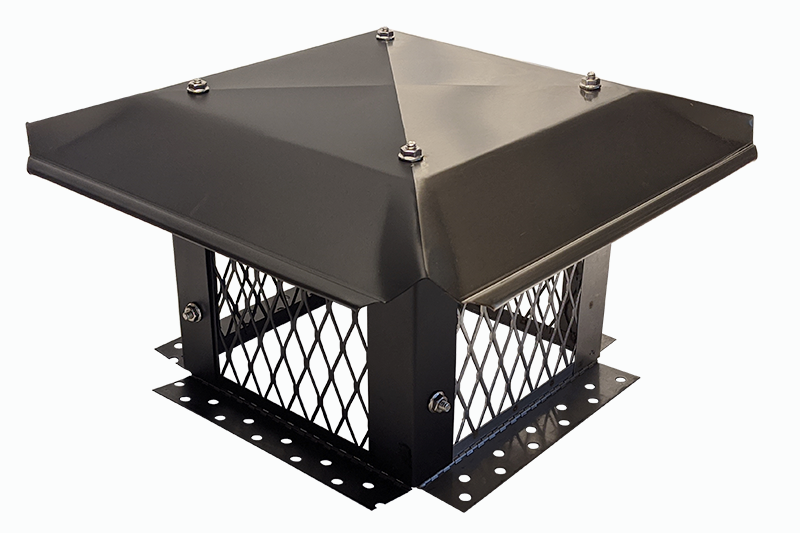

Premier Top Mount Partially Powder Coated

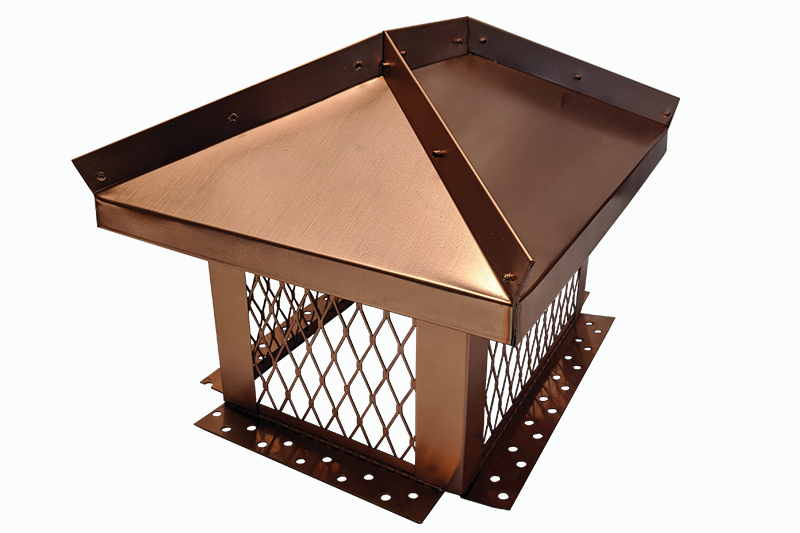

Premier Top Mount Copper Hip & Ridge
Single-Flue Caps

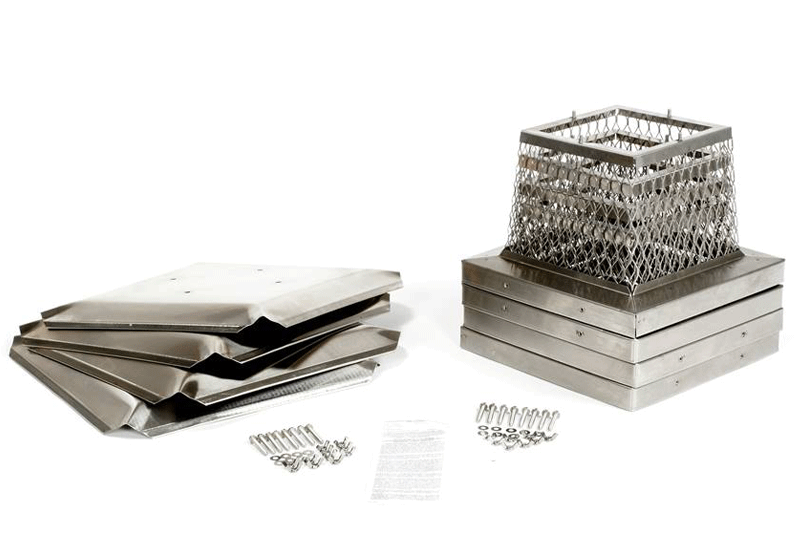

Premier Stackable 4 Pack Single Flue Caps
With Premier Stackable Single Flue Caps, you'll be able to inventory more product in less space and greatly reduce shipping costs! Check out these Features and Benefits:
- Highly Durable Sizes ranging from 9"x9" to 18"x18"
- Designed for Single Flue Masonry Chimneys
- Works for Wood, Pellet, Oil, Gas, and All Other Fuels
- 304-alloy Stainless Steel Construction with 3/4" rust resistant Mesh
- Base & Mesh are 18-gauge; Lid is 24 gauge
- Single-piece Base and Screen Frame—for added strength
- Heavy-duty Screen—keeps out critters and debris
- Easy to Assemble and Install
- Removable Lid with Open Screen Frame—makes for easy access and maintenance
- Attaches directly to the chimney's flue tile—to protect both the flue and crown
- Lifetime Warranty

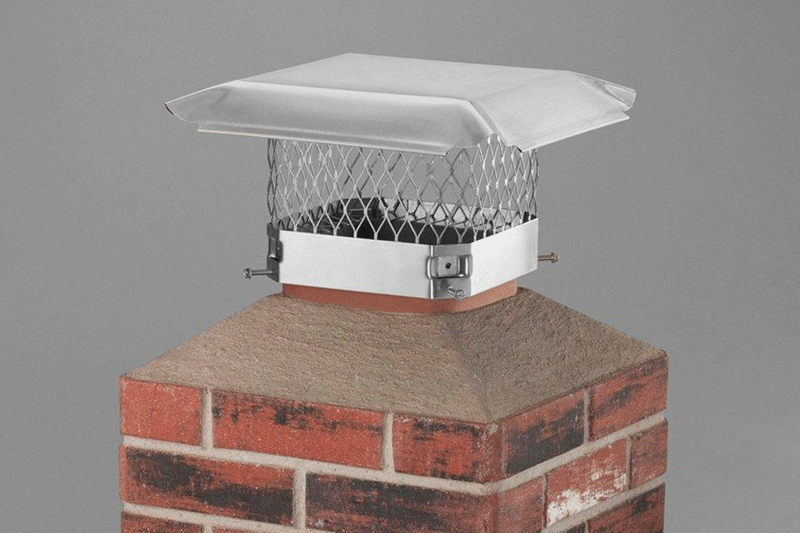

HY-C Single Flue Universal Caps
Constructed of 18 ga 304 Stainless Steel with a ¾" expanded stainless steel mesh (⅝" mesh also available). These caps mount to the outside of the flue tile providing greater free air space for better draft. HY-C leg kits attach cap to the inside of the flue if your flue tile doesn't extend above the crown.

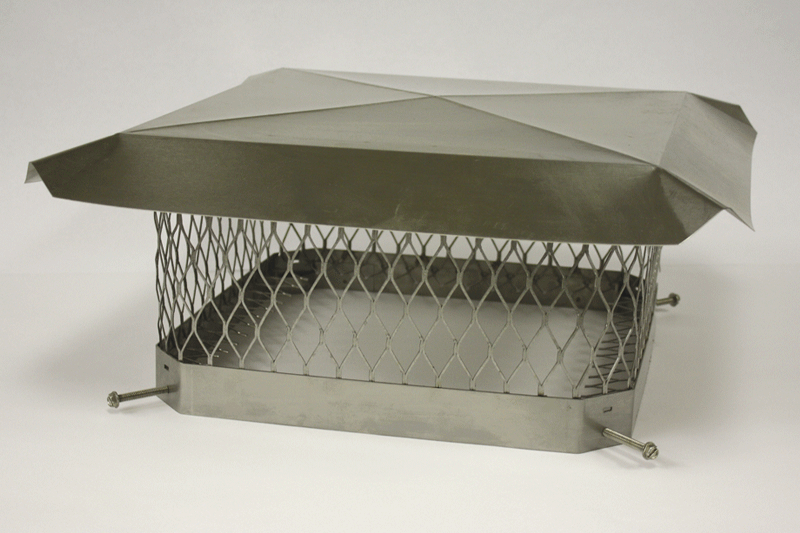

HY-C ShelterPro Single Flue Caps
Constructed of 24 ga 304 stainless steel with ¾" mesh. HY-C ShelterPRO caps have a smaller lid than traditional HY-C Single Flue caps making it easier to install caps side by side.

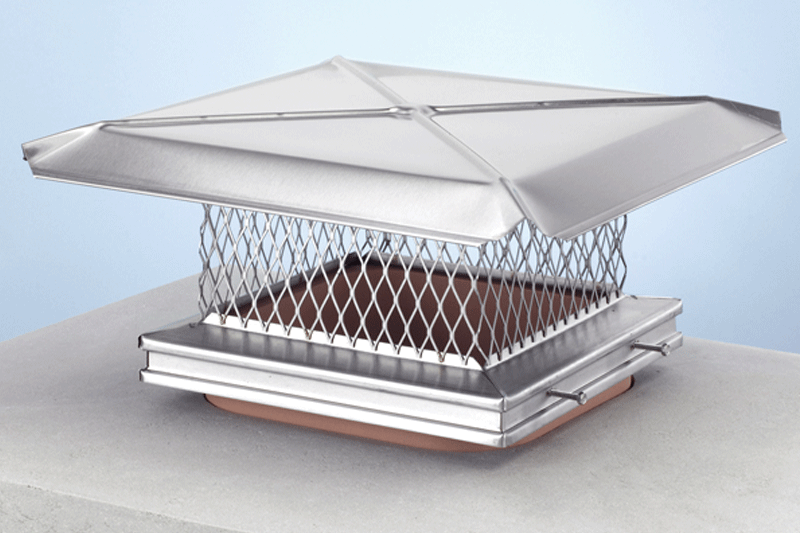

Gelco Single Flue Caps
Constructed of 18 gauge 304 stainless steel with a 3/4" expanded stainless steel mesh. These caps mount to the outside of the flue tile providing greater free air space for better draft. Gelco Flue Grippers attach cap to the inside of the flue if your flue tile does not extend above the crown. Copper caps are available on special order.

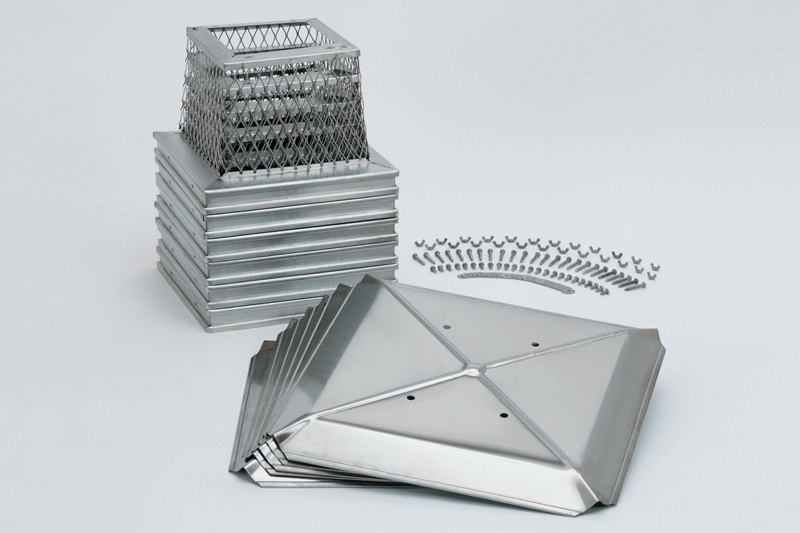

Gelco Single Flue Multi-Pack Caps
Constructed of 18 ga 304 Stainless Steel with a 3/4" expanded stainless steel mesh (5/8" mesh also available). These caps mount to the outside of the flue tile providing greater free air space for better draft. HY-C leg kits attach cap to the inside of the flue if your flue tile doesn't extend above the crown.

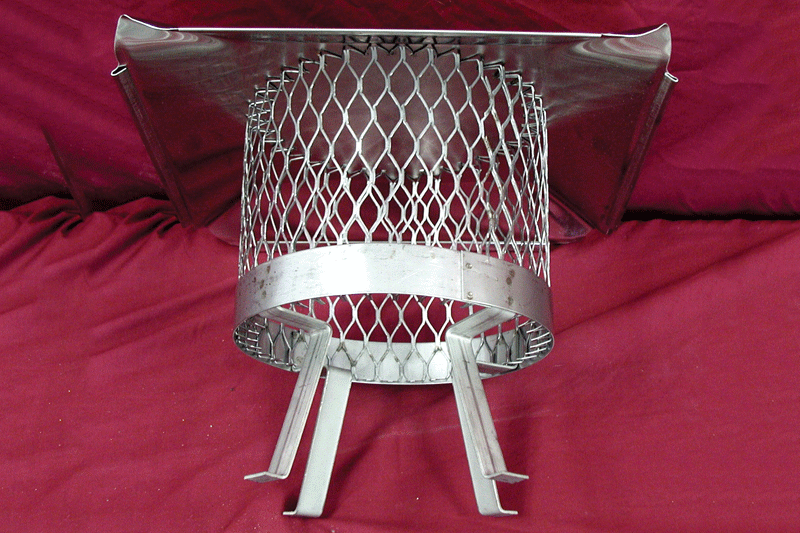

HY-C Round Single Flue Caps
Stainless steel single flue cap has welded on legs. It is also available in stainless steel black painted and black painted galvanized, special order. Call for quote.

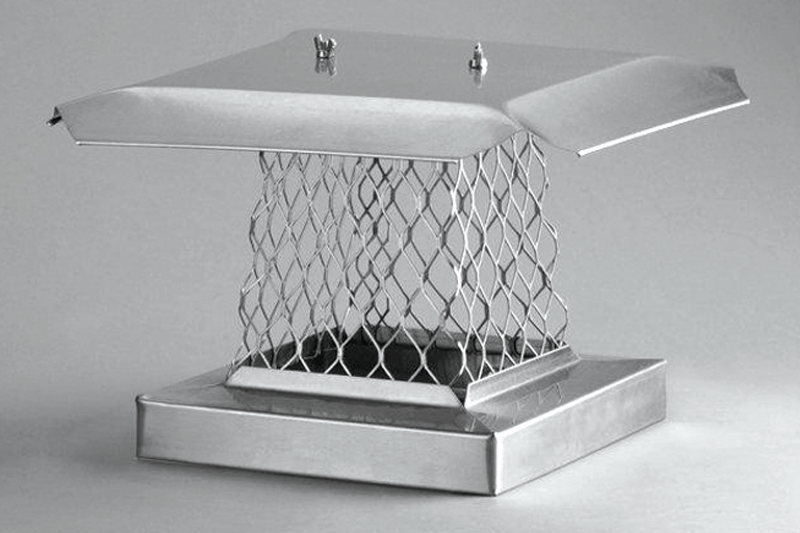

HY-C Multi-Pack Single Flue Caps
Need to store more caps in your van? These are packed 4 per box giving you 16 caps in only 4 boxes.
Multi-Flue Caps
Premier Top Mount Multi-Flue Caps

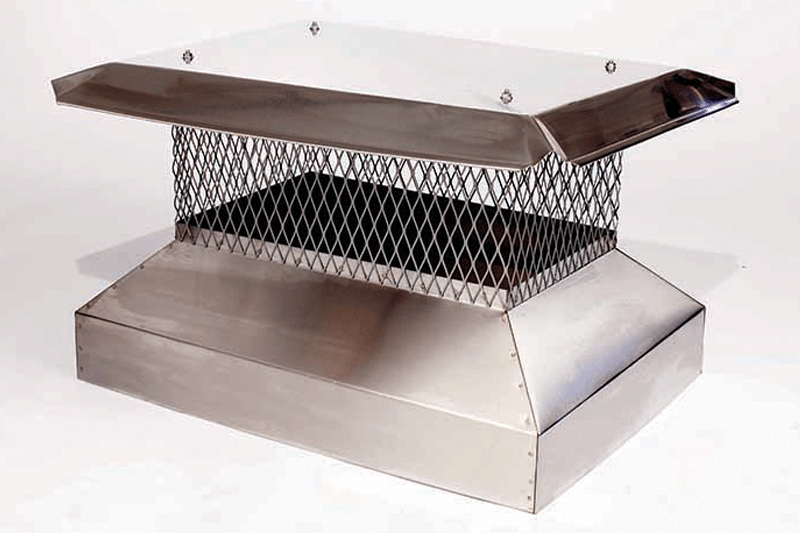

Pitched Skirt Multi-Flue Caps

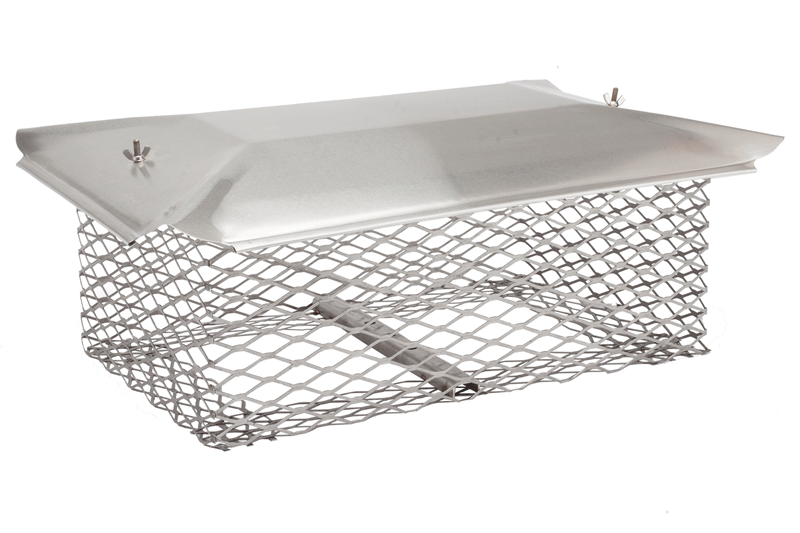

HY-C Universal Covers

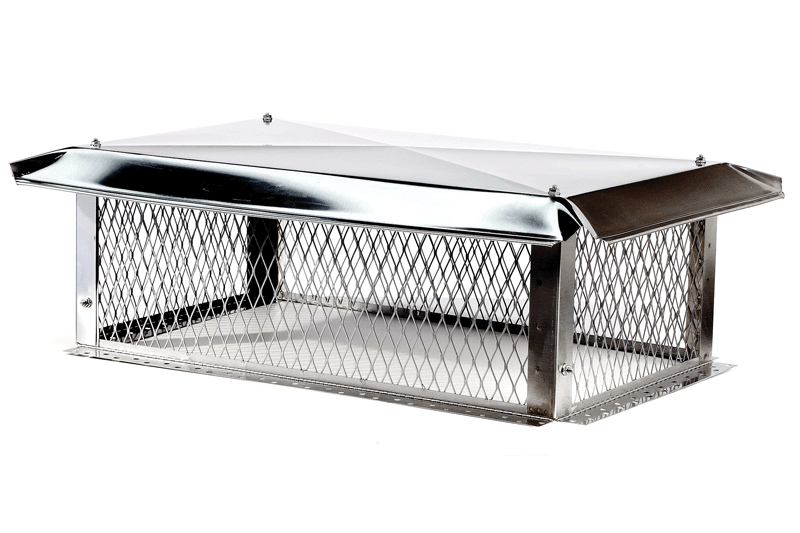

HY-C Multi-Flue Caps

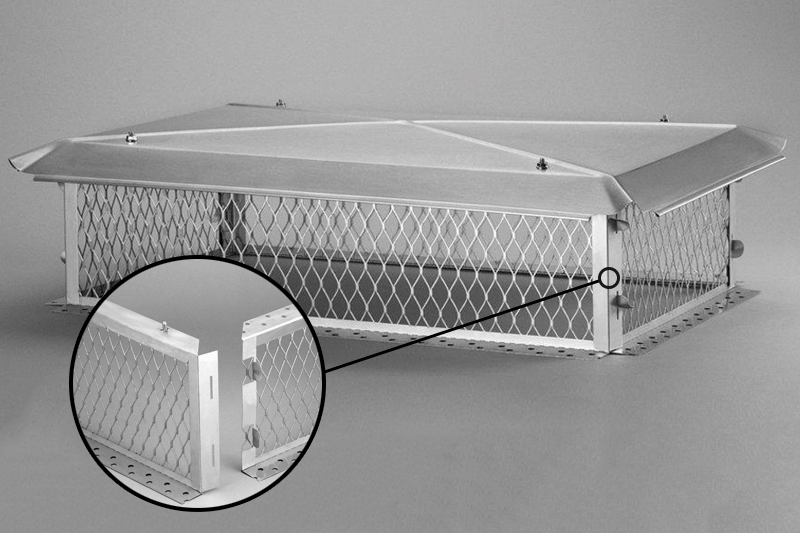

HY-C Multi-Flue Caps (Hinged)

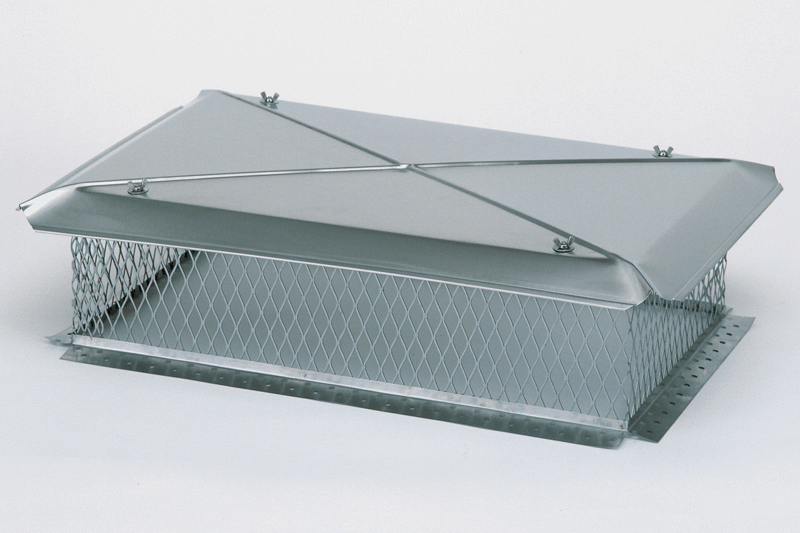

Gelco Multi-Flue Caps

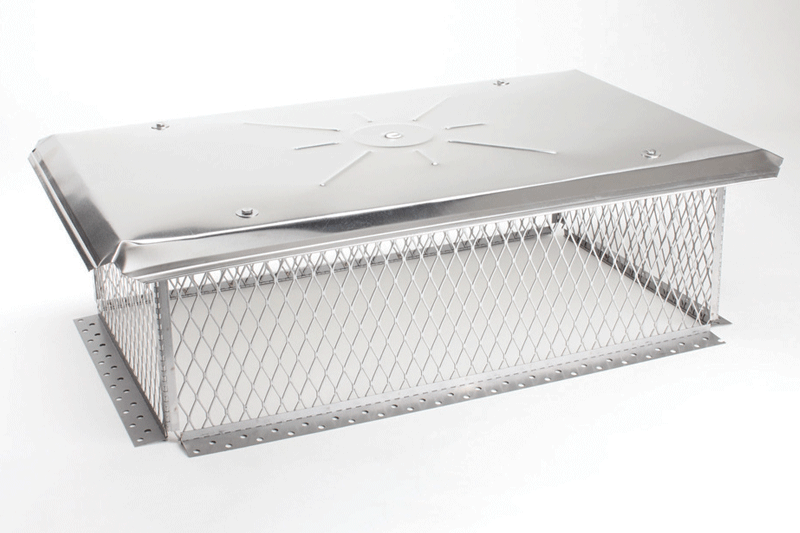

Gelco Chimney Protector

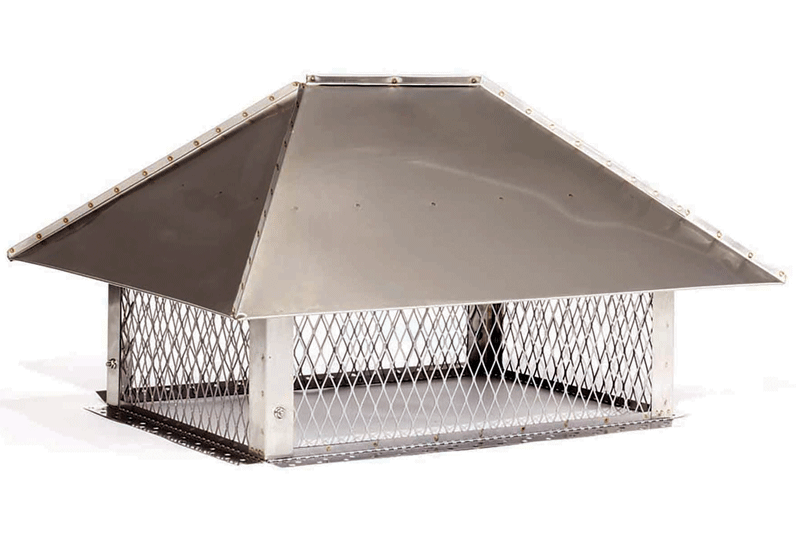

Hip and Ridge Caps
Hip & Ridge Caps

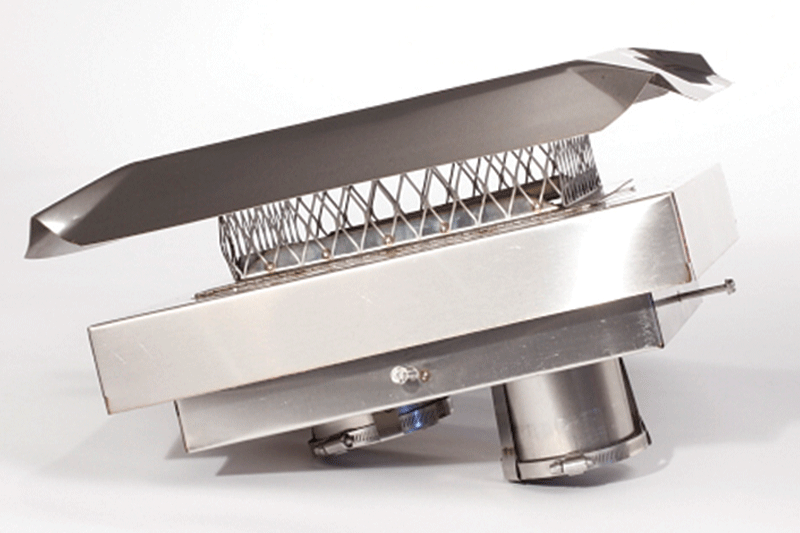

Co-Linear Caps
Co-Linear Caps
Liner Caps

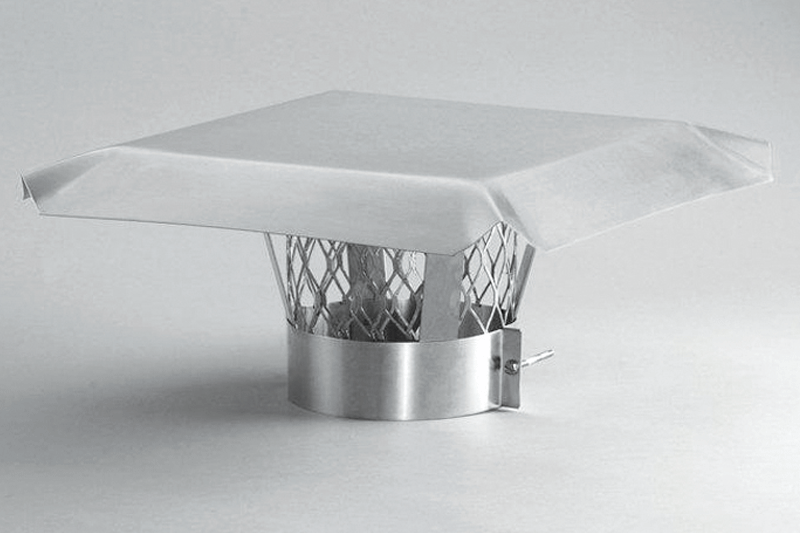

HY-C Liner Caps
These caps are made of 100% 304 stainless steel and have a removable 3/4" stainless steel mesh. It comes completely assembled and ready to strap around the outside of the liner with a 2" drawband and slotted hex head bolts and nuts.
Wind & Storm Caps

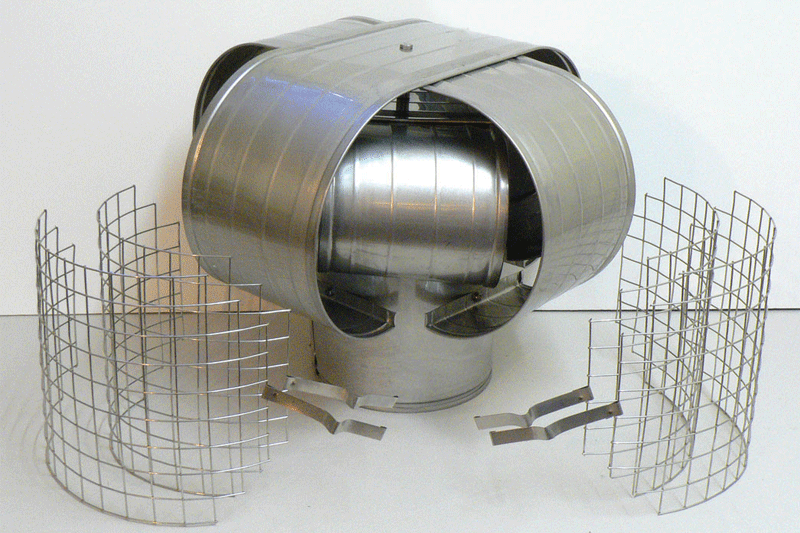

Vacu-Stack
The premier chimney cap for solving common wind-related chimney draft problems, Vacu-Stack caps protect the chimney from rain, snow, debris, and animals. The Vacu-Stack is made to fit solid pack Class A, Masonry, or Single Wall Chimneys. Stop down drafts and smoking caused from:
- Mountain winds in homes near slopes
- Wind deflected by tall trees
- Erratic, turbulent wind around buildings or other obstructions
- Appliances vented through the side of buildings It is made of 304 stainless steel and available in 3" - 10" round diameters and in 8" x 12" and 12" x 16" rectangular sizes. To install, simply slide the Vacu-Stack into the pipe and seal with a high temperature silicone sealant.

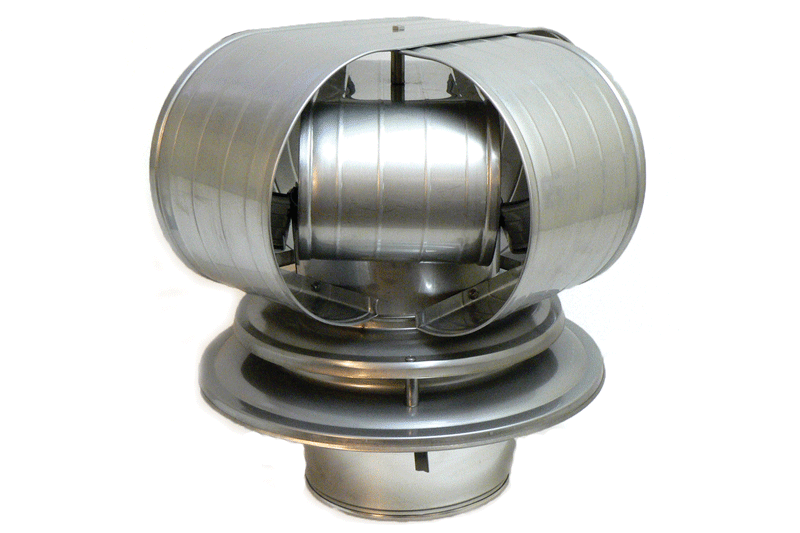

Vacu-Stack Model TDW
With its purpose the same as the original Vacu-Stack, this model is specifically designed for use with double or triple wall air-cooled or air-insulated chimneys. The new one-piece Vacu-Stack TDW design for air cooled chimneys is now leakproof because it is self-flashing. This new design eliminates the need to caulk and seal the VSS unit to the termination cover.

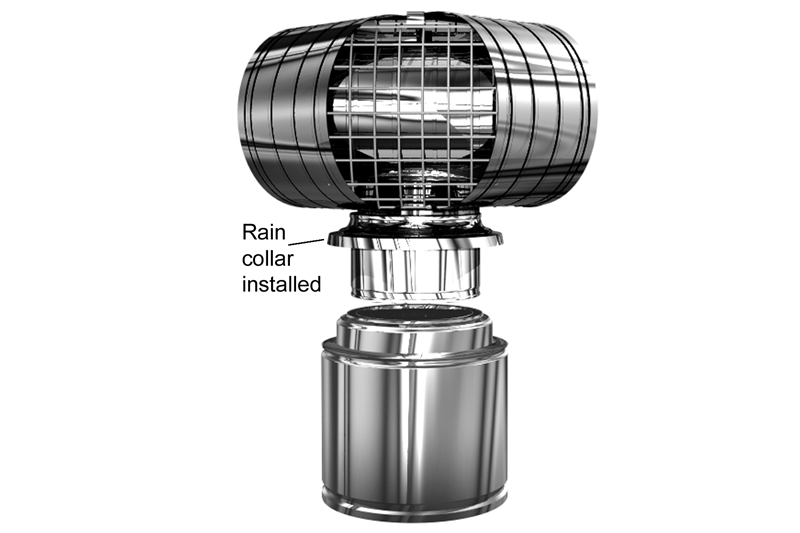

Air Cooled Vacu-Stack Preassembled with Screens
Call 1.800.897.8481

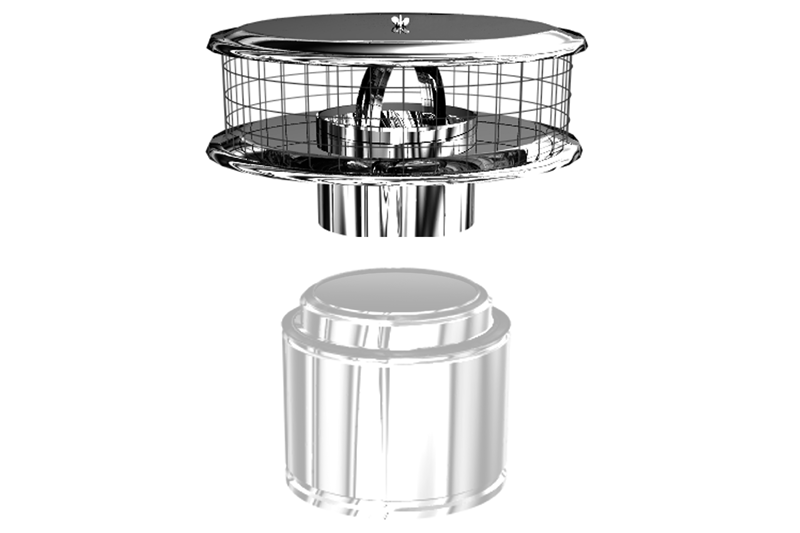

Weather-Shield Chimney Cap Model WSA
A unique alternative to the traditional chimney cap. Its 304 stainless steel construction assures superior corrosion resistance to weather and the hostile flue gas environment. Despite adverse weather, the WeatherShield will not rust. For use with solid pack Class A, masonry, and single wall chimneys keep out rain, snow, leaves, and animals, but keep sparks in.

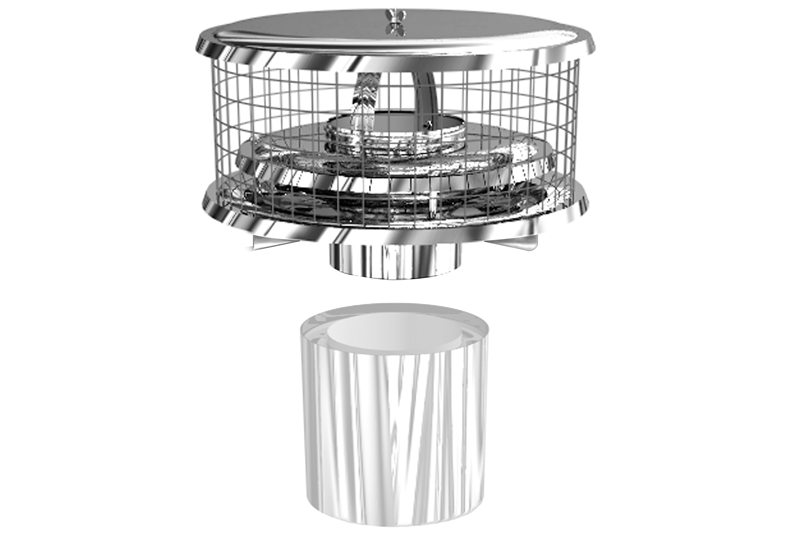

Weather-Shield Chimney Cap Model TDW
This model is made to fit airinsulated Class A double or triple wall chimneys.

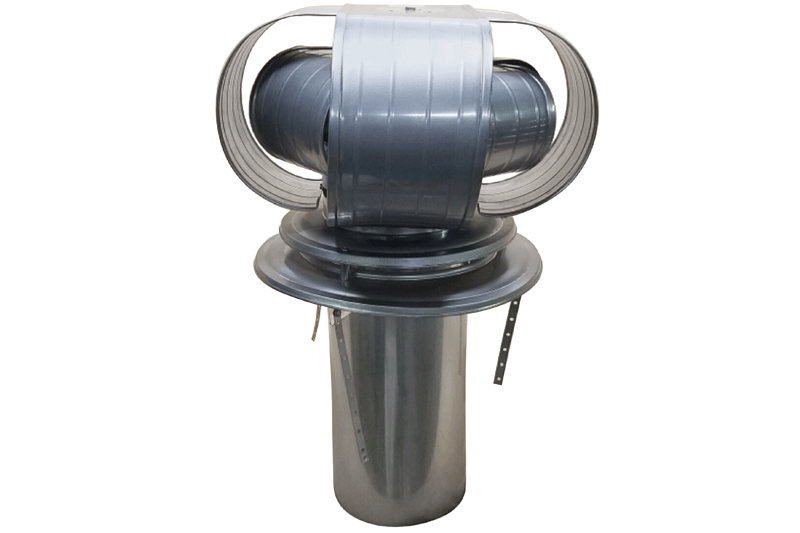

Vacu-Stack TallBoy
A new Vacu-Stack with a slip collar that extends 15" below the bottom lid assembly. Tie down straps are included (3) to secure the cap and eliminate liner float. 100% 304 Stainless insures a long life; ½" (S5) and 1"(S1) screens available.

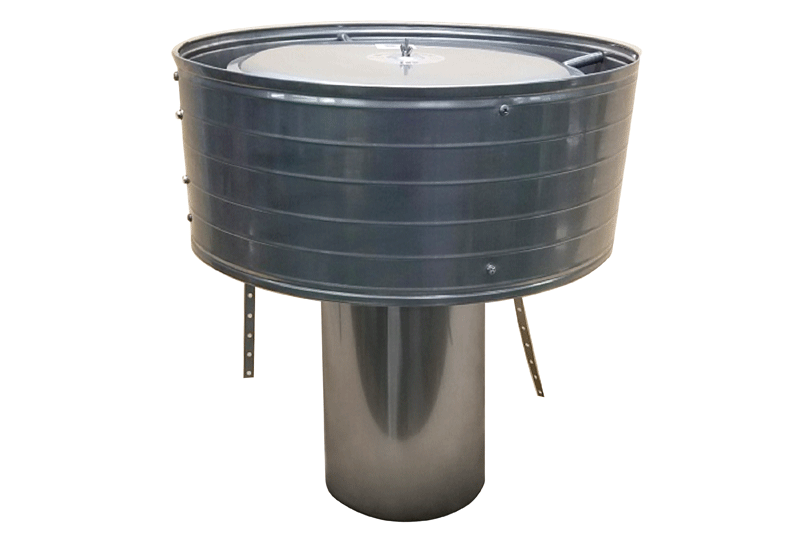

StormShield Tallboy
A new StormShield with a slip collar that extends 15" below the bottom lid assembly. Tie down straps are included (3) to secure the cap and eliminate liner float. 100% 304 Stainless insures a long life.

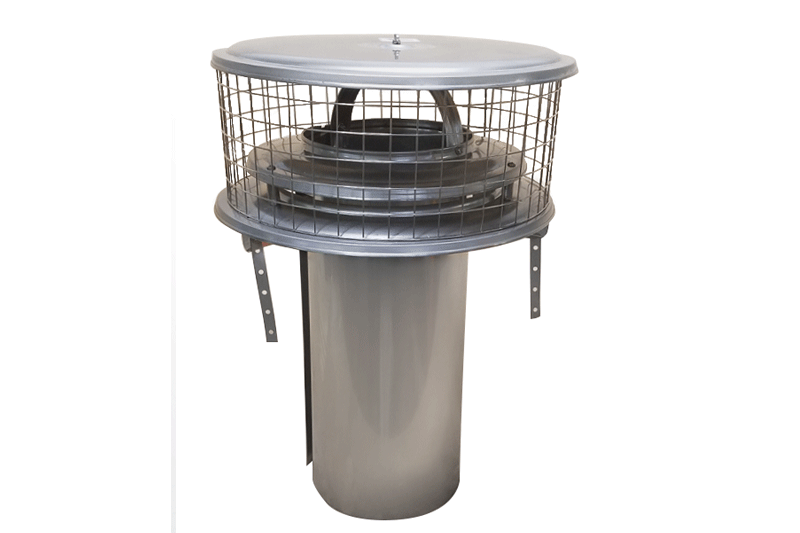

WeatherShield Tallboy
A new WeatherShield with a slip collar that extends 15" below the bottom lid assembly. Tie down straps are included (3) to secure the cap and eliminate liner float. 100% 304 Stainless insures a long life.
Accessories
Hardware Packs
Call 1.800.897.8481

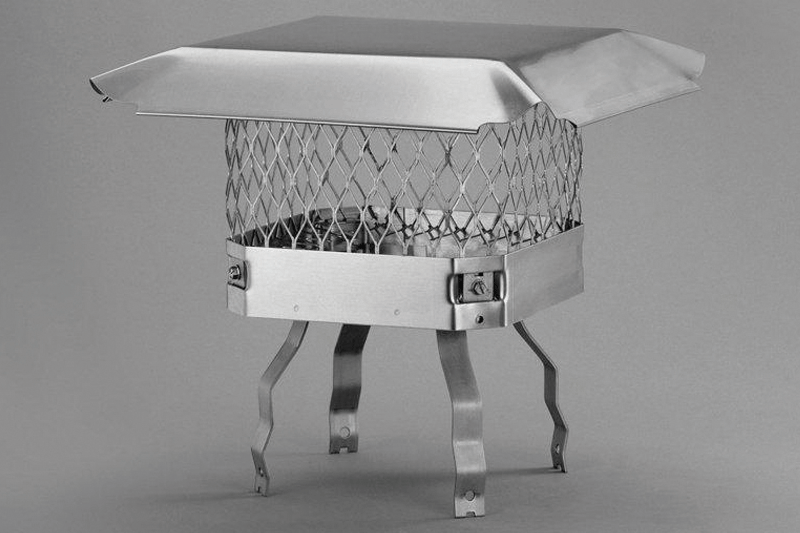

HY-C Leg Kits
Need to store more caps in your van? These are packed 4 per box giving you 16 caps in only 4 boxes.

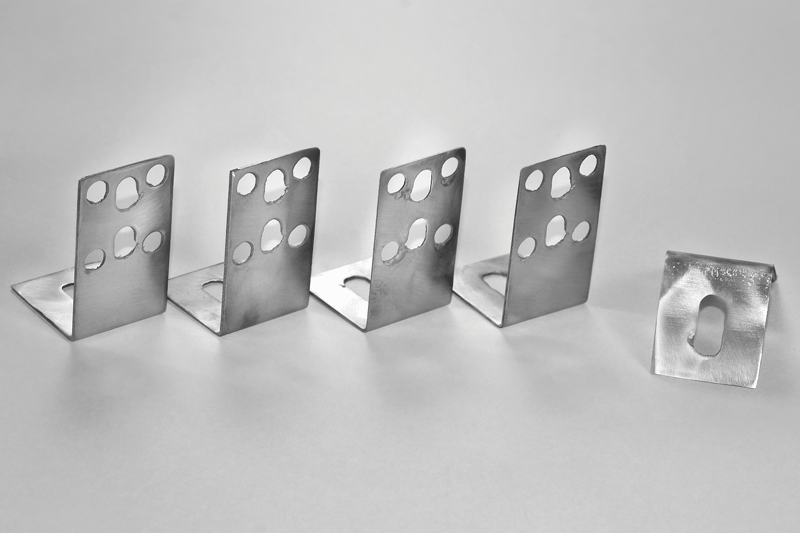

Cap Mounting Brackets

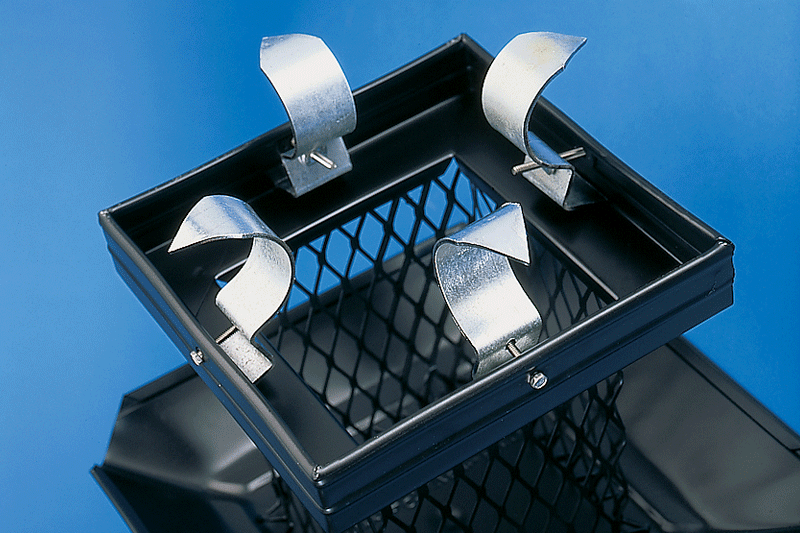

Gelco Flue Grippers
Allows for easy installation of single flue tops on flues where tiles don't extend above the crown. Attach legs and the cap becomes a slip-in style.

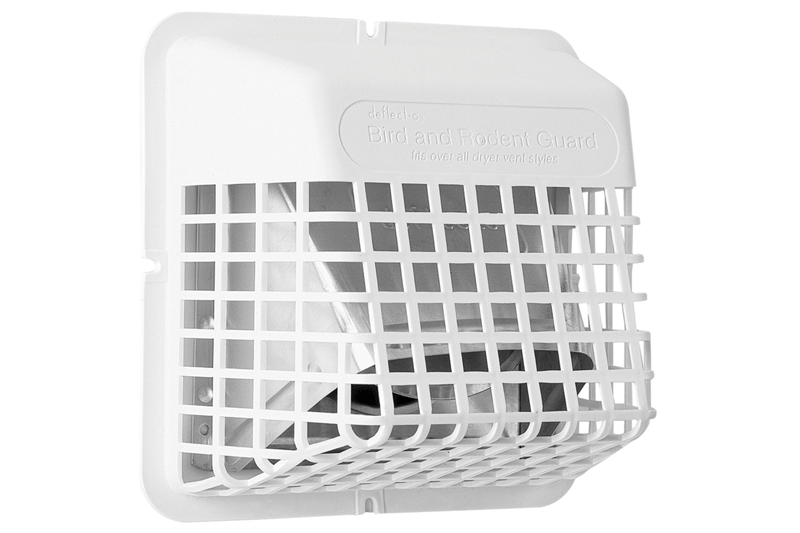

Universal Bird & Rodent Guard by Deflecto
Stainless steel legs to adapt any single flue cap to a slide-in style.

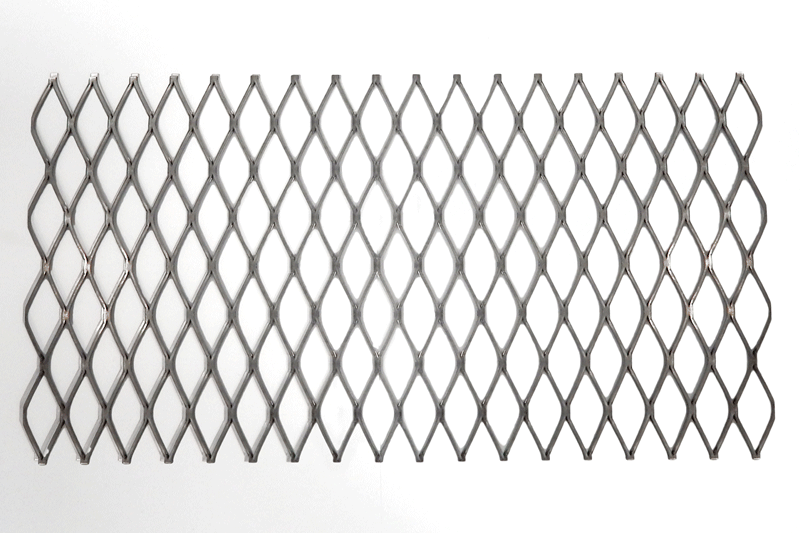

Stainless Steel Replacement Mesh
Our Replacement Mesh is also available in Copper and 5/8" California Mesh. We also stock mesh sheet so we can cut to fit any size necessary. Call for pricing on custom sizes.

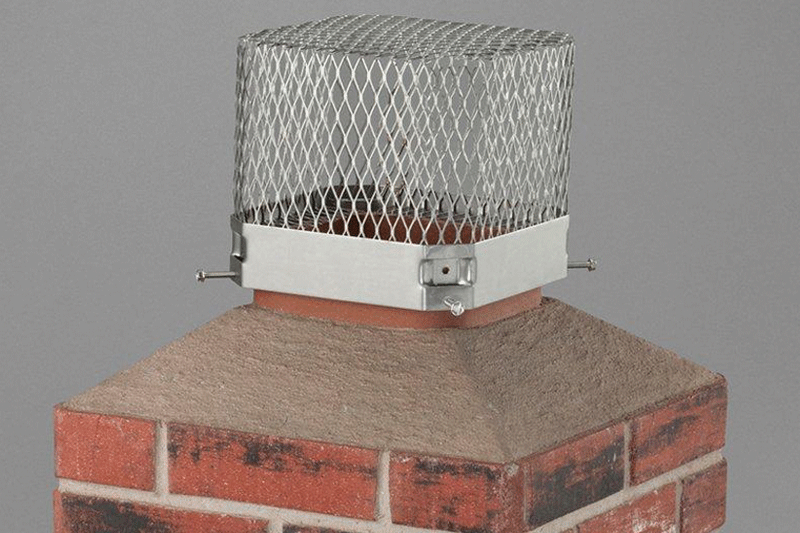

Raccoon Screens
This heavy-duty animal control screen is built to prevent access to the chimney from even the most bothersome animal pests such as raccoons or opossums. Its tamper-proof bolt-on attachment method makes it impossible for pests to remove and gain access.
Adapter Plate
The plate is made from 18ga 304 stainless steel and is designed to adapt our National Chimney skirt style Co-Linear cap to a flat surface. If you need a Co-Linear cap but you do not have a ceramic flue tile to connect it to, this plate is the answer. The plate will sit nicely onto a flat crown surface or a flat top plate. The plate has a 2" high collar that slips inside the Co-Linear cap. The angle flanges on the plate have slotted holes that line-up with the cone point screws on the Co-Linear cap for easy connection. The plate has a 2" border on all four sides for either mortaring into the crown or for screwing down to a top plate.
Conversion Kit
Convert your Weathershield into a Stormshield to keep out driving rains; also functions similar to a Vacu-Stack when there's wind related downdrafts.
Masonry Adapter
Adapt your Vacu-Stack or WeatherShield to any standard masonry flue using this adapter.
